Fiber Optic Adapter Panel BLANK ADAPTER PANEL

Model Number : TW-AP-BLK

Delivery Time : 7-10 days

Operatingtemperature : -40°C To +85°C

Numberoffibers : NO

Place of Origin : China

Connectortype : NO

Application : Data Centers, Telecommunications, High-speed Networks

Type : Fiber Optic Adapter

Brand Name : Twilight

Payment Terms : TT

Packaging Details : Carton Box

Polishtype : UPC/APC

Productname : Fiber Optic Adapter Panel

Durability : ≥1000 Mating Cycles

Contact Now

Product Description:

Modular adapter plate pre-assembled with multiple MPO LC SC FC ST adapters, installed inside fiber patch panel / cassette / 19” rack enclosure, for pass-through MPO-to-MPO trunk interconnection, used for data center high-density backbone wiring.

Features:

Panel body made of flame-retardant PC / PC+ABS thermoplastic, lightweight
Low cost solution compared with metal panel
Pre-installed plastic MPO adapters, snap-in port design
Port options: 4 / 6 / 8 / 12 ports per panel
Support 8F/12F/24F, SM OS2 / MM OM3, OM4, OM5
PC / APC endface available; optional shutter adapters for eye safety & dust protection
Front loading, tool-less installation and adapter replacement
Color coded adapters for quick identification of fiber type
Low insertion loss, stable optical performance, ≥500 mating cycles
LGX footprint, compatible with standard fiber cassette and 19” rack enclosure

Technical Parameters:

Type	Fiber Optic Adapter Panel
Connector Type	MPO LC SC
Return Loss	≥55dB (UPC), ≥60dB (APC)
Polish Type	UPC/APC
Mounting Type	Panel Mount Or Inline
Standards Compliance	TIA/EIA-604-5 (FOCIS 5)
Operating Temperature	-40°C To +85°C
Color	Beige, Aqua, Green
Durability	≥1000 Mating Cycles
Compatibility	Compatible With MPO/MTP Connectors

Applications:

Data center 40G/100G/200G/400G parallel optics
High-density fiber patch panel, MPO cassette
Telecommunication, 5G fronthaul, optical backplane

Photos:

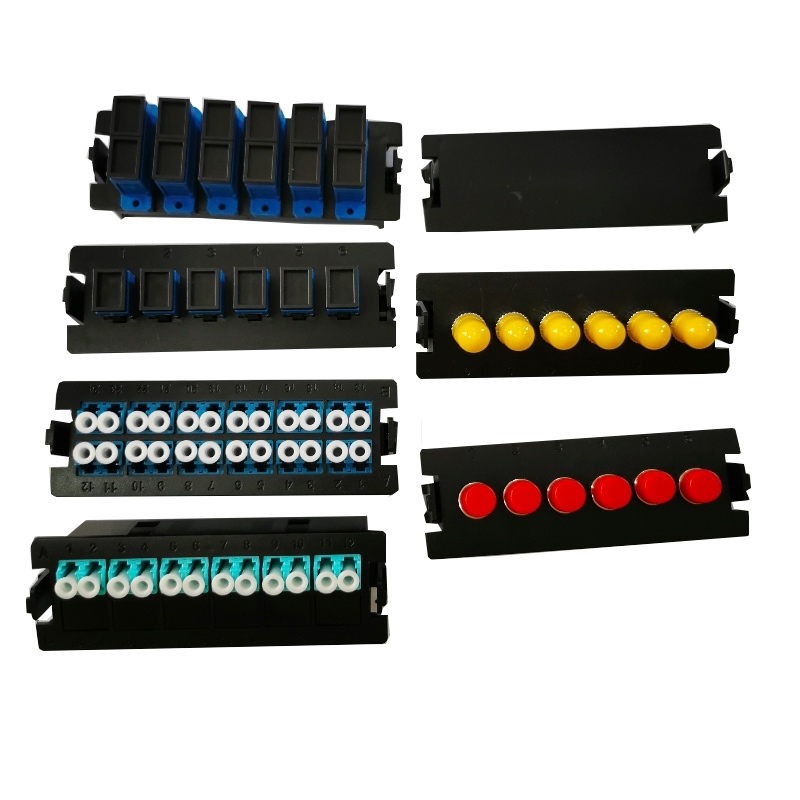

Fiber Optic Adapter Panel BLANK ADAPTER PANEL

Fiber Optic Adapter Panel BLANK ADAPTER PANEL Images
